Cube - Maintenance

Contents

Usage/Purpose

Main analysis scenarios are:

To see which dimensions that can be used with each fact in, for example Excel pivot analysis, see section Fact and Dimension Connections below.

Overview Facts

Cube Fact (DSV name) Measure Group Referenced Information Source BI Access View Access Type
BI TIME  (dimension) TIME - DIM_BI_TIME_BI On Line
FACT_CURRENCY_RATES REPORTING CURRENCY RATE FACT_CURRENCY_RATES FACT_CURRENCY_RATES_BI_OPT On Line
FACT_WO_ACTUALS_BI WO ACTUALS FACT_WO_ACTUALS FACT_WO_ACTUALS_BI On Line
FACT_WO BUDGET_BI WO BUDGET FACT_WO_BUDGET FACT_WO_BUDGET_BI On Line
FACT_WO PLANNED_BI WO PLANNED FACT_WO_PLANNED FACT_WO_PLANNED_BI On Line
FACT_WORK ORDER WORK ORDER FACT_WORK_ORDER FACT_WORK_ORDER_BI On Line

Each measure in the facts is described in section Measures. Corresponding Information Sources are described below. Detalled infomation about Information Sources can be found in IFS Online Documentation.

FACT_WO_ACTUALS
Work Order Actuals Information Source is based on the postings for work that has been performed on IFS\Work Orders. This information source carries transactions for time reporting, material issues, tools usages, expenses like travel expenses and external cost from purchasing.

FACT_WO_BUDGET
Work Order Budget Information Source is based on the manually entered budget costs and revenues on workorders. It should mainly be used in conjunction with Work Order Actuals information source for analysis.

FACT_WO_PLANNED
Work Order Planned Information Source is based on the planning lines for regarding work orders. It should mainly be used in conjunction with Work Order Actuals information source for analysis.

FACT_WORK_ORDERS
Work Order Information Source is based on IFS\Work Orders. This information source carries work orders in all statuses, i.e both active and historical work orders as well as work requests and fault reports.

Overview Dimensions

Cube Dimension Note
ACCOUNT
ACTION
ACTIVITY
ACTUAL FINISH DATE
ACTUAL START DATE
CAUSE
CLASS
CODE B
CODE C
CODE D
CODE E
CODE F
CODE G
CODE H
CODE I
CODE J
COMPANY
COMPANY REPORTING PERIOD
COMPATIBLE UNIT
CREATED_DATE
CRTICALITY
CUSTOMER
DISCOVERY
EQUPIMENT OBJECT
EVENT
FAULT TYPE
LINEAR ASSET
OPERATIONAL STATUS
ORGANIZATION
PERFORMED ACTION
PLANNED DATE
PLANNED FINISH DATE
PLANNED START DATE
PRIORITY
PROJECT
PROJECT PROGRAM
REPORTING CURRENCY
REPORTING DATE
REQUIRED FINISH DATE
REQUIRED START DATE
SALES PART
SERVICE CONTRACT
SITE
SLA
SLA FINISH DATE
SLA START DATE

SUB PROJECT


SUPPLIER
SYMPTOM
TIME TYPE
TOOL EQUIPMENT
VIM SERIAL
VOUCHER DATE
WO ACTUALS This is a cube-only dimension, i.e. not  supported by a standard dimension.
WO BUDGET This is a cube-only dimension, i.e. not  supported by a standard dimension.
WO CONNECTION TYPE
WO COST TYPE
WO PLANNED This is a cube-only dimension, i.e. not  supported by a standard dimension.
WORK ORDER
WORK TYPE CATEGORY
WORK TYPE



Configurations

The Maintenance cube supports calculation of base currency amounts to a reporting currency. To make this work it is necessary to create/select a currency rate type in one company as the rate source. The relevant configuration lookup must also be defined.

Refer technical documentation for more information.

Limitations

The Maintenance cube is using the Company Reporting Period dimension, which means that it is necessary to create a specific Reporting Period Definition to be used by this cube. The created/selected identity must also be defined in the lookup configuration for the ETL process, using Source = 'Maintenance'.

The cube supports calculation of base currency amounts to a reporting currency. To make this work it is necessary to create/select a currency rate type in one company as the rate source. The relevant configuration lookup must also be defined.

Refer technical documentation for more information.

Fact and Dimension Connections

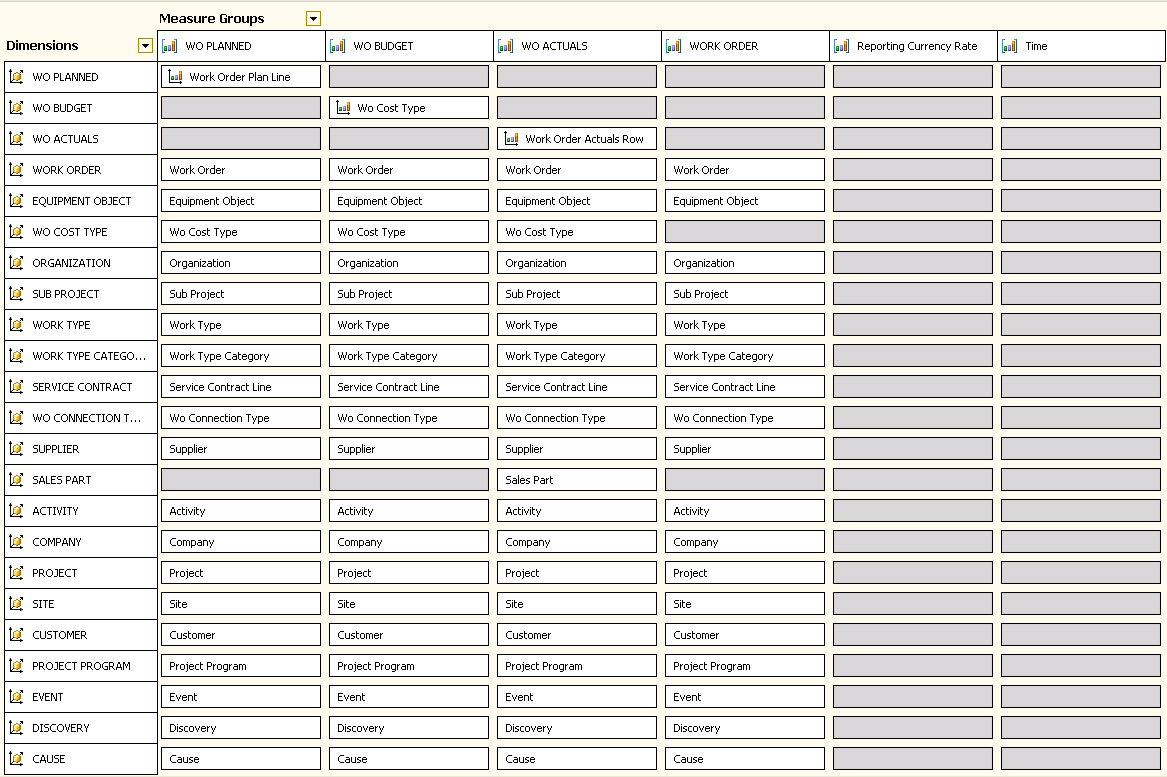

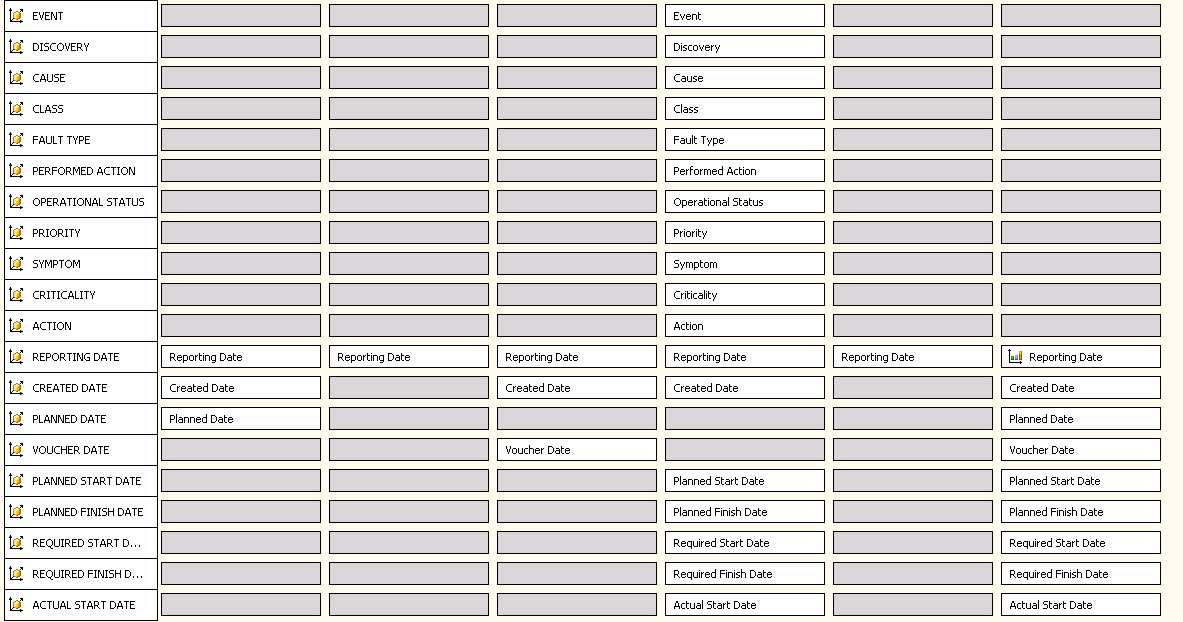

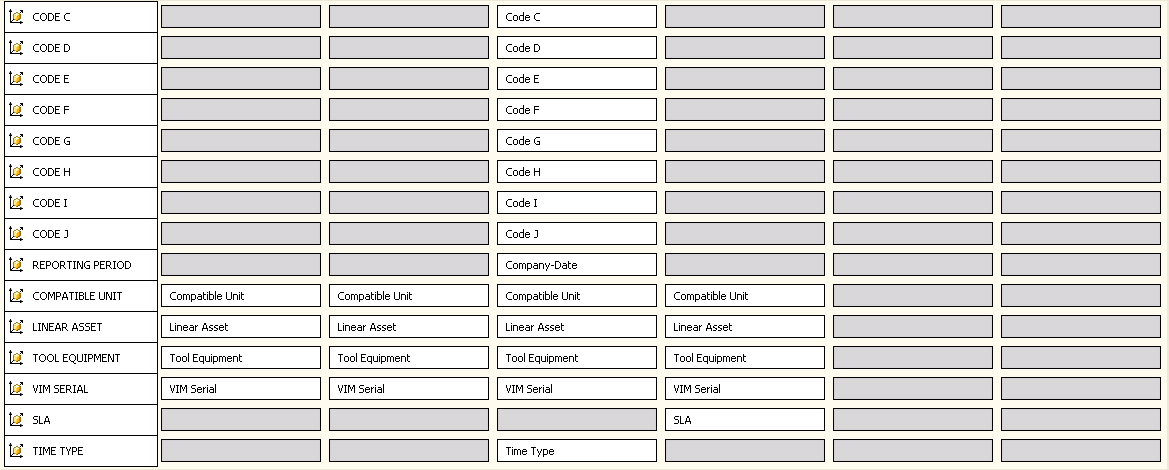

The following picture shows how different facts in the cube are connected to the available dimensions.





Measures

General

Aggregation of measures is based on SUM if not explicitly noted.

Basic Measures

This sections describes the basic measures in the cube. These are either measures defined in the core Information Source or in the ETL process. The columns have the following meaning:



Measure Measure Group Core Measure ETL Measure Cube Measure Measure Expression Reporting Currency Measure Aggr. Method Note
Qty Planned WO PLANNED YES NO NO NO NO SUM
Cost Amount Planned WO PLANNED YES NO NO NO NO SUM
Qty To Invoice Planned WO PLANNED YES NO NO NO NO SUM
Revenue Amount Planned WO PLANNED YES NO NO NO NO SUM
WO PLANNED Count WO PLANNED NO NO YES NO NO COUNT Count of records
Revenue Amount Planned RC WO PLANNED NO NO NO YES YES SUM
Cost Amount Planned RC WO PLANNED NO NO NO YES YES SUM
Cost Amount Budget WO BUDGET YES NO NO NO NO SUM
Revenue Amount Budget WO BUDGET YES NO NO NO NO SUM
WO BUDGET Count WO BUDGET NO NO YES NO NO COUNT Count of records
Revenue Amount Budget RC WO BUDGET NO YES NO YES YES SUM Budget revenue amount in reporting currency
Cost Amount Budget RC WO BUDGET NO YES NO YES YES SUM Budget cost amount in reporting currency
Qty Actual WO ACTUALS YES NO NO NO NO SUM
Cost Amount Actual WO ACTUALS YES NO NO NO NO SUM
Qty To Invoice Actual WO ACTUALS YES NO NO NO NO SUM
Revenue Amount Actual WO ACTUALS YES NO NO NO NO SUM
WO ACTUALS Count WO ACTUALS NO NO YES NO NO COUNT Count of records
Material Quantity Actual WO ACTUALS NO YES NO NO NO SUM
Preventive Cost Amount Actual WO ACTUALS NO YES NO NO NO SUM
Preventive Hours Actual WO ACTUALS NO YES NO NO NO SUM
Other Cost Amount Actual WO ACTUALS NO YES NO NO NO SUM
Modification Cost Amount Actual WO ACTUALS NO YES NO NO NO SUM
Installation Hours Actual WO ACTUALS NO YES NO NO NO SUM
Corrective Cost Amount Actual WO ACTUALS NO YES NO NO NO SUM
Corrective Hours Actual WO ACTUALS NO YES NO NO NO SUM
Project Hours Actual WO ACTUALS NO YES NO NO NO SUM
Project Cost Amount Actual WO ACTUALS NO YES NO NO NO SUM
Modification Hours Actual WO ACTUALS NO YES NO NO NO SUM
Total Hours Actual WO ACTUALS NO YES NO NO NO SUM
Installation Cost Amount Actual WO ACTUALS NO YES NO NO NO SUM
Other Hours Actual WO ACTUALS NO YES NO NO NO SUM
Service Hours Actual WO ACTUALS NO YES NO NO NO SUM
Service Cost Amount Actual WO ACTUALS NO YES NO NO NO SUM
Material Cost Amount Actual WO ACTUALS NO YES NO NO NO SUM
Service Cost Amount Actual RC WO ACTUALS NO YES NO YES YES SUM Actual service cost amount in reporting currency
Other Cost Amount Actual RC WO ACTUALS NO YES NO YES YES SUM Actual other cost amount in reporting currency
Material Cost Amount Actual RC WO ACTUALS NO YES NO YES YES SUM Actual material cost amount in reporting currency
Cost Amount Actual RC WO ACTUALS NO YES NO YES YES SUM Actual cost amount in reporting currency
Revenue Amount Actual RC WO ACTUALS NO YES NO YES YES SUM Actual revenue amount in reporting currency
Installation Cost Amount Actual RC WO ACTUALS NO YES NO YES YES SUM Actual installation cost amount in reporting currency
Preventive Cost Amount Actual RC WO ACTUALS NO YES NO YES YES SUM Actual preventive cost amount in reporting currency
Project Cost Amount Actual RC WO ACTUALS NO YES NO YES YES SUM Actual project cost amount in reporting currency
Modification Cost Amount Actual RC WO ACTUALS NO YES NO YES YES SUM Actual modification cost amount in reporting currency
Corrective Cost Amount Actual RC WO ACTUALS NO YES NO YES YES SUM Actual corrective cost amount in reporting currency
Work Order Count WORK ORDER YES NO NO NO NO SUM
Fault Order Count WORK ORDER YES NO NO NO NO SUM
Preventive Order Count WORK ORDER NO YES NO NO NO SUM
Corrective Order Count WORK ORDER NO YES NO NO NO SUM
Project Order Count WORK ORDER NO YES NO NO NO SUM
Service Order Count WORK ORDER NO YES NO NO NO SUM
MWT Sum WORK ORDER YES NO NO NO NO SUM Elapsed waiting time
MWT Count WORK ORDER NO NO YES NO NO COUNT NON-EMPTY Count of records where Elapsed waiting time differs from NULL
MTFS Sum WORK ORDER NO YES NO NO NO SUM Elapsed time to start
MTFS Count WORK ORDER NO NO YES NO NO COUNT NON-EMPTY Count of records where Elapsed time to start differs from NULL
MTFF Sum WORK ORDER NO YES NO NO NO SUM Elapsed time to finish
MTFF Count WORK ORDER NO NO YES NO NO COUNT NON-EMPTY Count of records where Elapsed time to finish differs from NULL
MTTR Sum WORK ORDER YES NO NO NO NO SUM Elapsed execution time
MTTR Count WORK ORDER NO NO YES NO NO COUNT NON-EMPTY Count of records where Elapsed execution time differs from NULL
Installation Order Count WORK ORDER NO YES NO NO NO SUM
Modification Order Count WORK ORDER NO YES NO NO NO SUM
Other Order Count WORK ORDER NO YES NO NO NO SUM
Late Actual vs Sla Start Count WORK ORDER YES NO NO NO NO SUM
Late Actual vs Planned Finish Count WORK ORDER YES NO NO NO NO SUM
Late Actual vs Planned Start Count WORK ORDER YES NO NO NO NO SUM
Late Actual vs Required Finish Count WORK ORDER YES NO NO NO NO SUM
Late Actual vs Sla Finish Count WORK ORDER YES NO NO NO NO SUM
Late Actual vs Required Start Count WORK ORDER YES NO NO NO NO SUM
Number Of Days Time NO NO YES NO NO COUNT NON-EMPTY count of non-empty values
Currency Rate Reporting Currency Rate YES YES NO NO NO SUM Currency rate used to calculate amounts to reporting currency.
The core measure is modified in ETL

Calculated Measures

Calculated measures are in the cube calculated with respect to other measures. The table below defines the general meaning/definition of each calculated measure.

Measure Meaning Note
<work_type_cat> Hours Rate %

 		 <work_type_cat>  Hours Actual / Total Hours Actual

e.g. Service Hours Rate % = Service Hours Actual / Total Hours Actual		 <work_type_cat> is one of: Service, Project, Preventive, Corrective, Installation, Modification, Other
<work_type_cat> Cost Amount Rate % <work_type_cat> Cost Amount Actual / Cost Amount Actual

e.g. Service Cost Amount Actual % = Service Cost Amount Actual / / Cost Amount Actual		 <work_type_cat> is one of: Service, Project, Preventive, Corrective, Installation, Modification, Other
<work_type_cat2> Rate % <work_type_cat2> Order Count  / Work Order Count

e.g. Project Rate % = Project Order Count / Work Order Count		 <work_type_cat2> is one of: Service, Project, Preventive, Corrective, Installation, Modification, Other, Fault
Mean Waiting Time Work Hours MWT Sum / MWT Count
Mean Waiting Time Work Days (MWT Sum / 8) / MWT Count
Mean Waiting Time Work Minutes (MWT Sum * 60) / MWT Count
Mean Time For Start Work Hours MTFS Sum / MTFS Count
Mean Time For Start Work Days (MTFS Sum / 8) / MTFS Count
Mean Time For Start Work Minutes (MTFS Sum * 60) / MTFS Count
Mean Time For Finish Work Hours MTFF Sum / MTFF Count
Mean Time For Finish Work Days (MTFF Sum / 8) / MTFF Count
Mean Time For Finish Work Minutes (MTFF Sum * 60) / MTFF Count
Mean Time To Repair Work Hours MTTR Sum / MTTR Count
Mean Time To Repair Work Days (MTTR Sum / 8) / MTTR Count
Mean Time To Repair Work Minutes (MTTR Sum * 60) / MTTR Count
Mean Time Between Failure Days Number Of Days / Corrective Order Count
Mean Time Between Failure Hours (Number Of Days * 24) / Corrective Order Count
Mean Time Between Failure Minutes (Number Of Days * 24*60) / Corrective Order Count

Time Based Measures

Time based measures are calculated in the cube with respect to other measures. The table below defines the meaning/definition of  the different time measures. These measures need to be used with a specific time dimension defined in the table below.

Measure Meaning
YTD Year to Date
Aggregated value for current month in current  year. E.g. for period 201210 Ytd represents sum of periods 201201-201210.
Based on [REPORTING_DATE].[RepDateMFHy]
R12 Rolling 12 (Completed) Moths
For a given period, the sum all months from one year back up to the previous month. E.g. Rolling 12 for 201210 is the sum of months 201110 - 201209
Based on [REPORTING_DATE].[RepDateMFHy]
PY Previous Year
The value of the corresponding month one year back. E.g. for month 201210, the value of month 201110.
Based on [REPORTING_DATE].[RepDateMFHy]
YTD PY Year to Date Previous Year
Aggregated value for corresponding month one year back. E.g. for month 201210 YTD Previous Year represents sum of months 201101-201110.
Based on [REPORTING_DATE].[RepDateMFHy]
R12 PY Rolling 12 (Completed) Months Previous Year
For a given month, first going one year back, then taking the sum of all months from one (more) year back up to the previous month. E.g. for month 201210 the sum of month 201010-201109
Based on [REPORTING_DATE].[RepDateMFHy]



Included Example Reports and Dashboards

This section lists dashboards and reports in the example content for the BI Analysis Package that is using this cube:

UI Name Type
Equipment Cost Analysis Dashboard
Equipment Hour Analysis Dashboard
Maintenance Analysis Dashboard
Work Order Analysis Dashboard
Work Order Distribution Dashboard
Work Order Classification Analysis Dashboard
Equipment Cost/Revenue per Customer Report
Equipment Cost Last 24 Months APC - Analysis Panel Component
Equipment MTBF Last 24 Months APC - Analysis Panel Component
Equipment MTTR/MWT Last 24 Months APC - Analysis Panel Component
Equipment Wo Count Last 24 Months APC - Analysis Panel Component

Required Components

The BI specific and also related core components listed in this section are required, i.e. they must along with other dependent components, be part of the customer installation to successfully use this cube.

NOTE that only directly used components are listed. Each such component can have its own list of dependent components. Please refer to the Component Deployment Profile File for each component to get the full picture

Component Type Component Name Product
BISEDI BI BI Services Dimensions Business Intelligence
APTOOL BI Common scripts and utilities, BI Anapac Business Intelligence
APPSDI BI Application Services Analysis Package Dimension Business Intelligence
ENTEDI BI Enterprise Analysis Package Dimensions Business Intelligence
ACCRDI BI Accounting Rules Analysis Package Dimensions Business Intelligence
ACCRFT BI Accounting Rules Analysis Package Fact Business Intelligence
PROJDI BI Project Analysis Package Dimensions Business Intelligence
MSCODI BI Maintenance Common Analysis Package Dimensions Business Intelligence
PCMSDI BI PCM Service Contract Info BI Anapac Dimensions Business Intelligence
EQUIDI BI Equipment Analysis Package Dimensions Business Intelligence
MPCCDI BI Gen Inventory and Distr BI Anapac Dimensions Business Intelligence
ORDEDI BI Customer Orders Analysis Package Dimensions Business Intelligence
WODI BI Work Order BI Anapac Dimensions Business Intelligence
WOFT BI Work Order BI Anapac Facts Business Intelligence
WOANAC BI Work Order Analysis Cube Business Intelligence
ENTERP CORE Enterprise Financials
ACCRUL CORE Accounting Rules Financials
PROJ CORE Project Projects
MSCOM CORE Maintenance Common Service and Asset
WO CORE Preventive and Corrective Maintenance Service and Asset
PCMSCI CORE PCM Service Contract Information Service and Asset
EQUIP CORE Equipment Service and Asset
MPCCOM CORE General Inventory and Distribution Supply Chain
ORDER CORE Customer Order Supply Chain

Note: BI Component WOANAC

Included Example Reports and Dashboards

This section lists dashboards and reports in the example content for the BI Analysis Package that is using this Cube:

UI Name Type
Maintenance Excel Dashboard
Equipment Cost/ Revenue per Customer Report
Equipment Cost - Last 24 Months APC - Analysis Panel Component
Equipment MTBF - Last 24 Months APC - Analysis Panel Component
Equipment MTTR/MWT Last 24 Months APC - Analysis Panel Component
Equipment Wo Count - Last 24 Months APC - Analysis Panel Component
